Validate before export
Catch issues before export, with clear statuses for checks that need review or must be resolved first.
Material missingAmbiguous orientationOvercam requiredComplex curvesBall-cut path missingIncompatibleDouble-sided milling
Clean, layered DXF output from Onshape models.
Validate your models, preview the generated files, and export structured DXFs from Onshape for 2.5-axis CNC and sheet-based manufacturing workflows.
Free downloads during beta. No subscription required yet.
Works with part studios, assemblies, and imported STEP/Parasolid geometry.
Features
A faster route from 3D model to machine-ready DXF.
Avoid drawing workarounds, face-by-face exports, and manual DXF assembly.
Address validation issues
A companion Onshape custom feature resolves overcam and ball-cut warnings by adding the relief and toolpath edges the exporter needs, and marks parts to exclude from the DXF package.
OvercamBall-cut edgesExclude from DXF

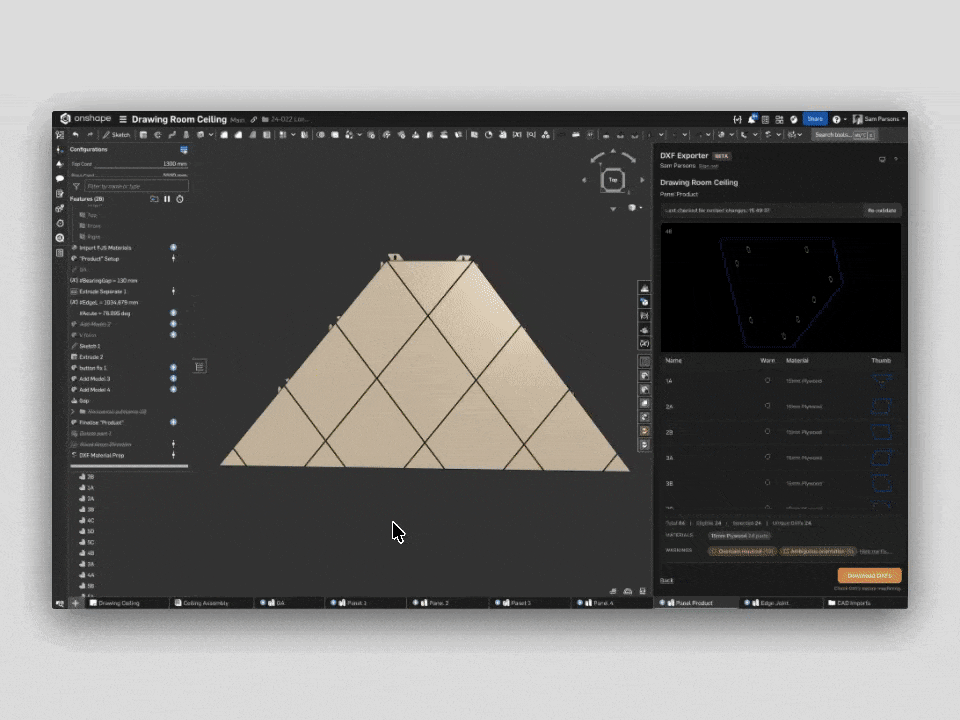

Set grain and part orientation
A second companion custom feature sets grain directions and flips which face is treated as the back, including on sheet metal parts.
Grain directionFace orientation
Catch changes before export
If the design history or configuration changes after validation, you’ll be warned so you can revalidate the model before generating files.
Design historyConfiguration
Preview layered DXFs
Review generated DXFs in the browser before downloading, with colours showing toolpath type and layer names giving tool size and depth for machinists.
Cut outsideCut insidePocketHoleBall cutV-cut
Example layer: 3MM_HOLE_8MM
indicates a 3 mm hole, 8 mm deep
